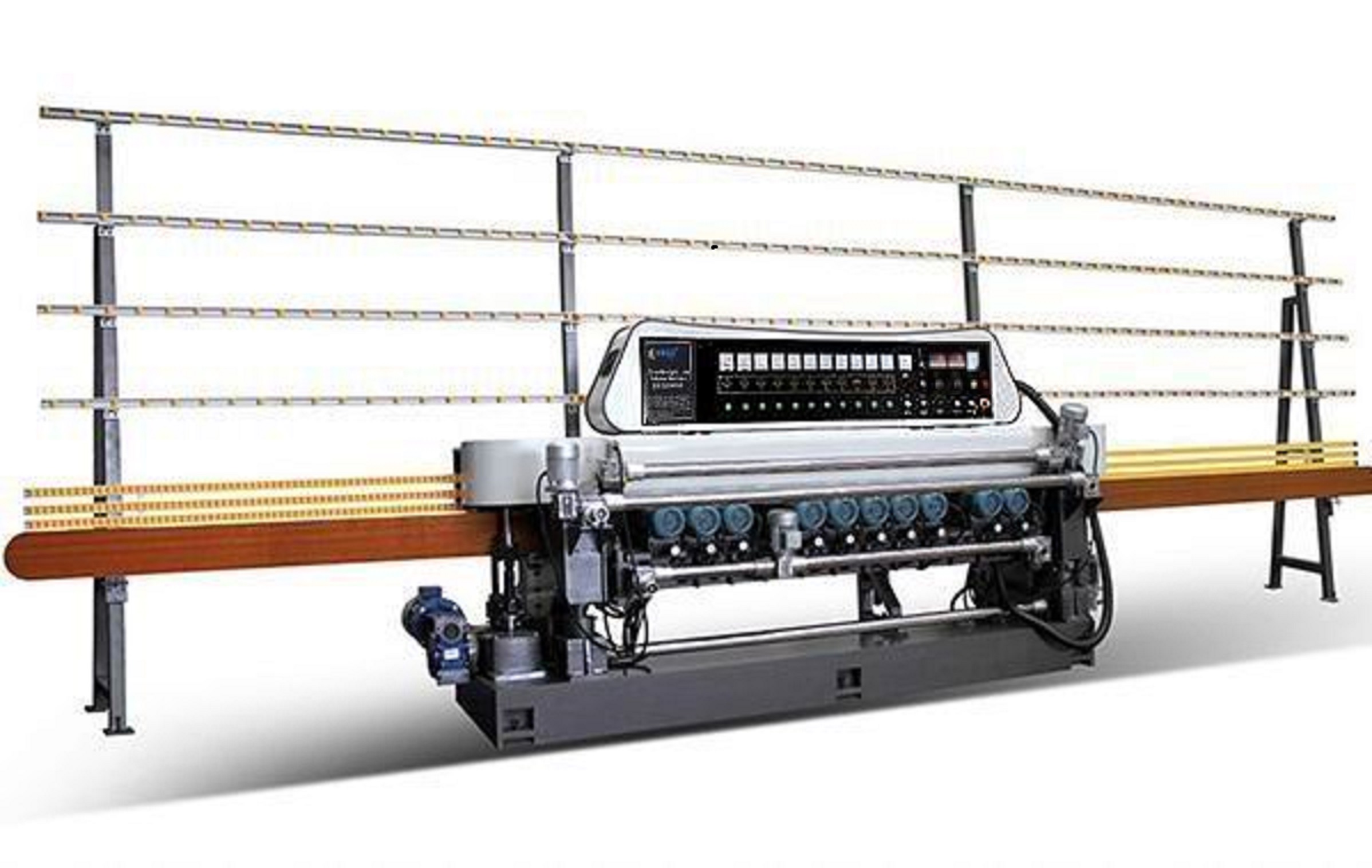

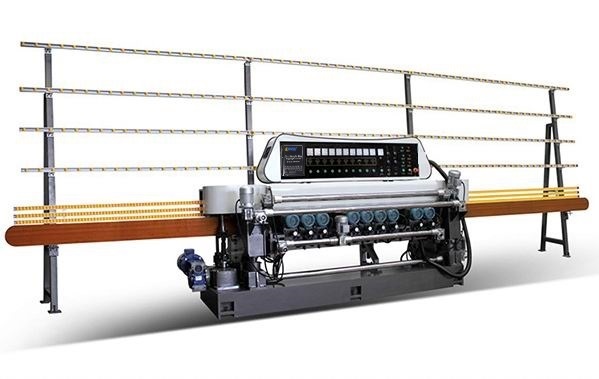

Glass Straight-line Beveling Machine- Chain type

Our glass straight line beveling machine is specialized equipment for processing the bevel edge of flat glass, coarse grinding, fine grinding and polishing have been done in one processing circle.  Automatic or manual operation is subject to the customer’s selection, as well as the positioning of grinding wheels.  Grinding motors could be move forward or backward integrally, front beam could be move forward or backward, and grinding head could be tilted, easy and convenient for adjustment and operation. This machine is also able to process soft stone materials.

More information, please contact us.

Items

BXM261

BXM261S

BXM261SJ


BXM371

Grinding   spindles

9

9

9


11

Min.   glass size

100*100mm

30*30mm

20*20mm


100*100mm

Max.   beveling width

35mm

15mm

35mm


50mm

Beveling   angle

0-30°

0-30°

0-30°


0-30°

Grinding   speed

0-3.5m/min

0-3.5m/min

0-3.5m/min


0-3.5m/min

Glass   thickness

3-12mm

3-12mm

3-12mm


3-12mm

Total   power

21kw

21kw

21kw


24kw

Weight

4000kg

4000kg

4200kg


4500kg

Dimension

6400*1200*2500mm

6500*1200*2500mm

6500*1200*2500mm


7600*1200*2500mm
