Glass Straight-Line Edging Machine

price : $
  • time : 2022.09.14

Set:




  • product introduction
  • Guestbook

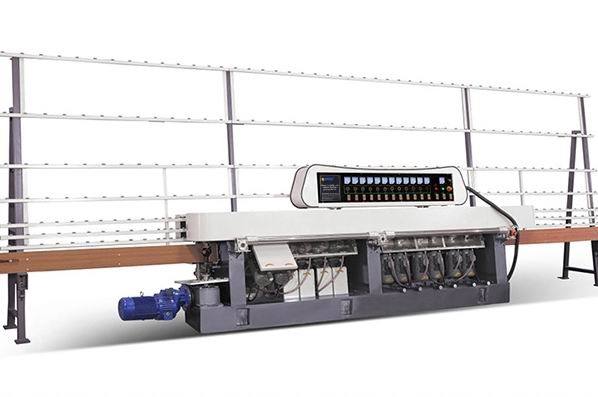

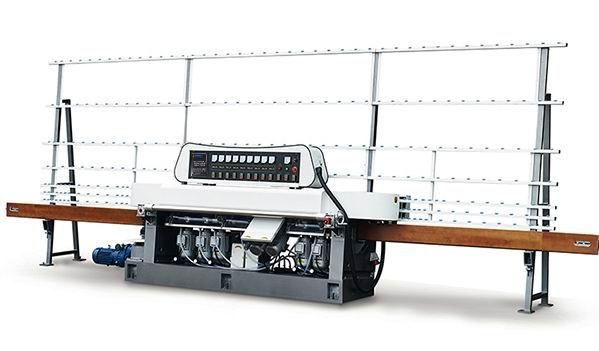

Glass Straight-Line Edging Machine

These machines are applicable to the grinding of straight edge, bottom edge and pointedness of different size thickness. It provides rough and fine grinding and polishing at once. It can be polishing itself, and the edge that has been polished just looks like the original. While adjusting different processing thickness, collate the transmitting system that controlled by electronic before adjusting, and the fore chamfering grinder can be moved synchronically with the fore beam, with advanced structure, high precision, easy operation and high working efficiency. It is the necessary tool for glass technology.  Automatic or manual operation is subject to the customer’s selection, as well as the legend of grinding wheels.

More information, please contact us.

Model

Speed   (m/min)

Min. glass size (mm)

Thickness   (mm)

Installed   Power (KW)

Overall   dimension (mm)

Weight   (KG)

BM4

0.8-6

80*80

3-25

9.5

5200*1000*2500

1800

BM8

0.8-6

80*80

3-25

16.5

6200*1000*2500

2800

BM9

0.8-6

80*80

3-25

18

6800*1000*2500

3000

BM10

0.8-6

80*80

3-25

19

6800*1000*2500

3200

BM10WP

0.5-6

20*20

3-50

28.5

7500*1500*2600

6000

BM12

0.8-6

80*80

3-25

26

7800*1000*2500

4500

flat edge.jpg直边效果3.jpg11TOU4.JPG1632492594243818.jpg1632492725353247.jpg
