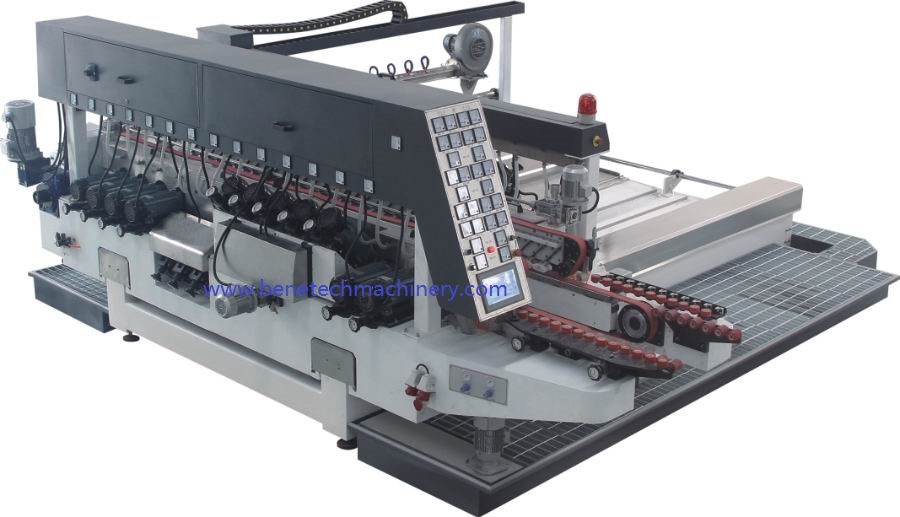

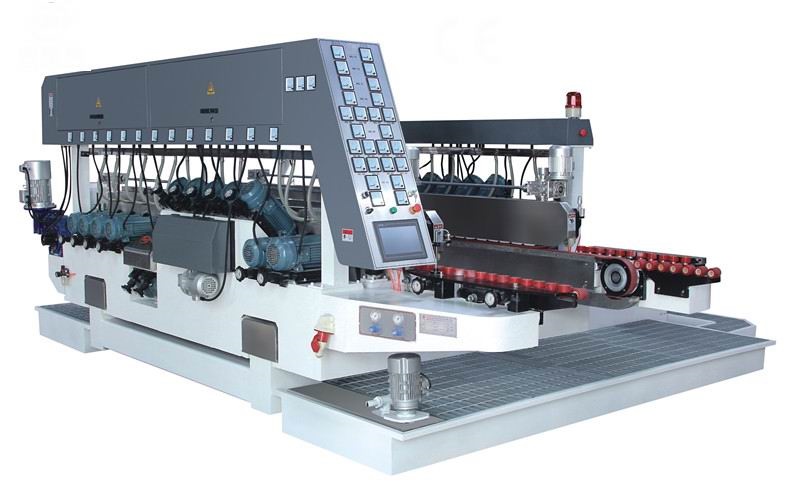

Series Glass Double Edging Machine-With automatic wear compensation

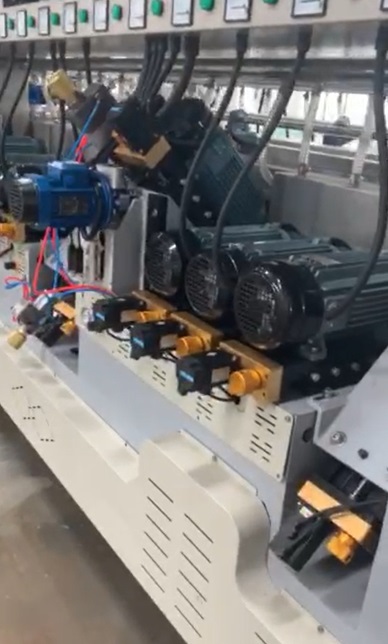

This machine is designed for processing furniture glass, home appliance glass and architectural glass, which requires high polishing and fast working speed. This machine equipped with 20 grinding spindles for process two edges at the same time, rough grinding, fine grinding and polishing will be finished during one working travel, Easy Operation, High efficiency, Good Polishing Effect is the advantage of this series machine.

It is automatic wear compensation in grinding wheels and polishing wheels.

Glass width and wheels quantity are subject to the customer's selection. More information, please contact us.

Type

BDE2000

BDE2500

BDE3000

BDE3700

BDE4500

BDE3700A

Installed power(kw)

46

46

46

46

46

49

Delivery speed(m/min)

0.5-6.5

0.5-6.5

0.5-6.5

0.5-6.5

0.5-6.5

0.5-6.5

Glass width(mm)

200-2000

200-2500

200-3000

200-3700

200-4500

200-3700

Glass thickness(mm)

3-30

3-30

3-30

3-30

3-30

3-30

Parallel tolerance(mm)

±0.20mm

±0.20mm

±0.20mm

±0.20mm

±0.20mm

±0.20mm

Diagonal tolerance(mm)

0.50mm/m²

0.50mm/m²

0.50mm/m²

0.50mm/m²

0.50mm/m²

0.50mm/m²

Weight of machine(kg)

6100

6500

7100

8000

9000

8200

Base Dimension(mm)

3670X4380X1880

4130X4380X1880

4630X4380X1880

5330X4380X1880

6130X4380X1880

5330X4600X1880

Cut Safety corner or remove film






0-3mm
