Glass Double Pencil Edging Machine

price : $
  • time : 2022.09.14

Set:




  • product introduction
  • Guestbook

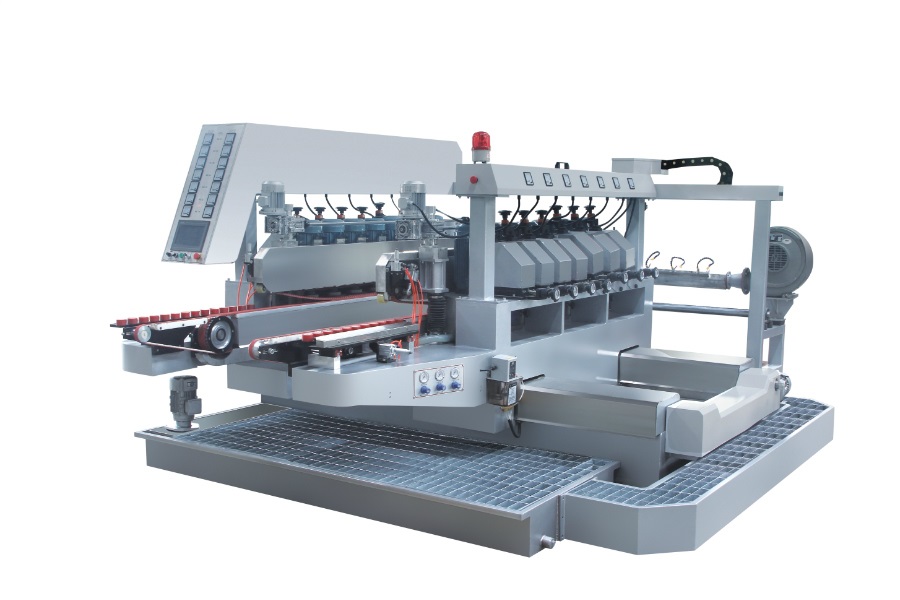

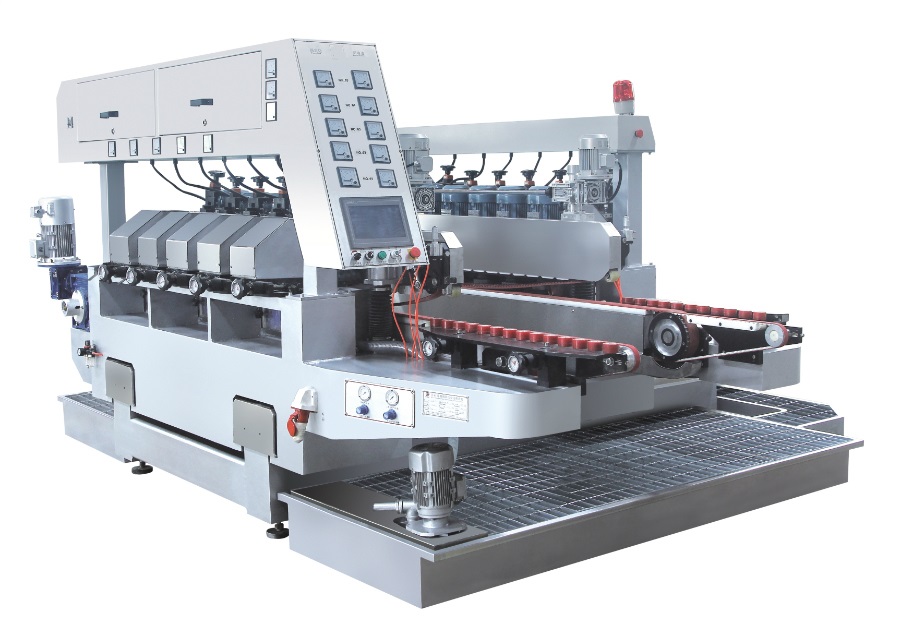

Series Glass Double Pencil Edging Machines

10 grinding series pencil double edging machine is designed for processing flat glass of different size and thickness, grinding spindles could be tilted easily, flat edge, round edge, OG edge, etc could be done by this series machine. It’s adopted of PLC control system. The grinding spindles can be oscillated freely, convenient replacing.

Glass width and wheels quantity are subject to the customer’s selection.

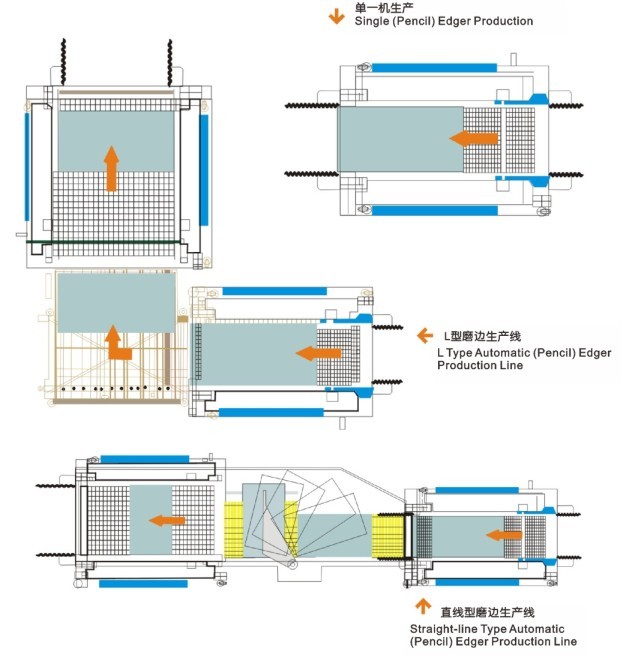

The production line is consisting of two glass double pencil edging machines, and a 90° (or straight-line) transfer table.

Specifications

BEP1210

BEP1610

BEP2010

BEP2510

Working width(mm)

130-1200

130-1600

150-2000

200-2500

Glass thickness(mm)

3-12

3-12

3-12

3-12

Transmission speed(m/min)

0.5-6

0.5-6

0.5-6

0.5-6

Total power(KW)

24.5

24.5

24.5

24.5

Pneumatic Pressure(Kpa)

6

6

6

6

Measurement(mm)

3000*3880*1800

3400*3800*1800

3800*3800*1800

4300*3800*1800

Weight(kgs)

6700

7100

7500

9200
