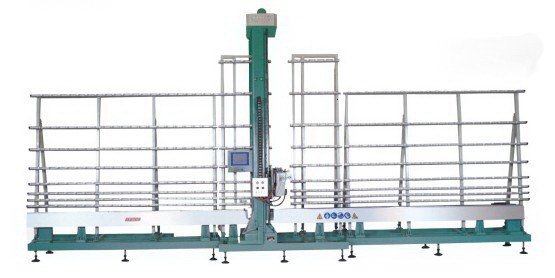

Numerical Control Vertical Drilling Machine

This machine adopts computerized control. The worker only have to input the drilling position, lay the glass on the synchronous conveying belt, press start button and it will finish drilling by itself. It will stop automatically after drilling.

With the combination of touch screen and PLC control, the color display of operation interface and mouse control operation, the machine has reliable properties, high precise and is easy to operate, suitable for batch production with multi-hole of large flat glass.

 There are Single-head and double-head types for customer's selection.

Model No.

BVD2550

BVD2550D

Drilling diameter

Ø4-Ø100mm

Ø4-Ø100mm

Max glass size

2500*5000mm

2500*5000mm

Glass thickness

5-25mm

5-25mm

Concentricity

>0.15mm

>0.15mm

Power

7.5kw

11.5kw

Air pressure

0.6-0.8Mpa

0.6-0.8Mpa

Dimension

8000*1350*3700mm

8000*1350*3700mm
