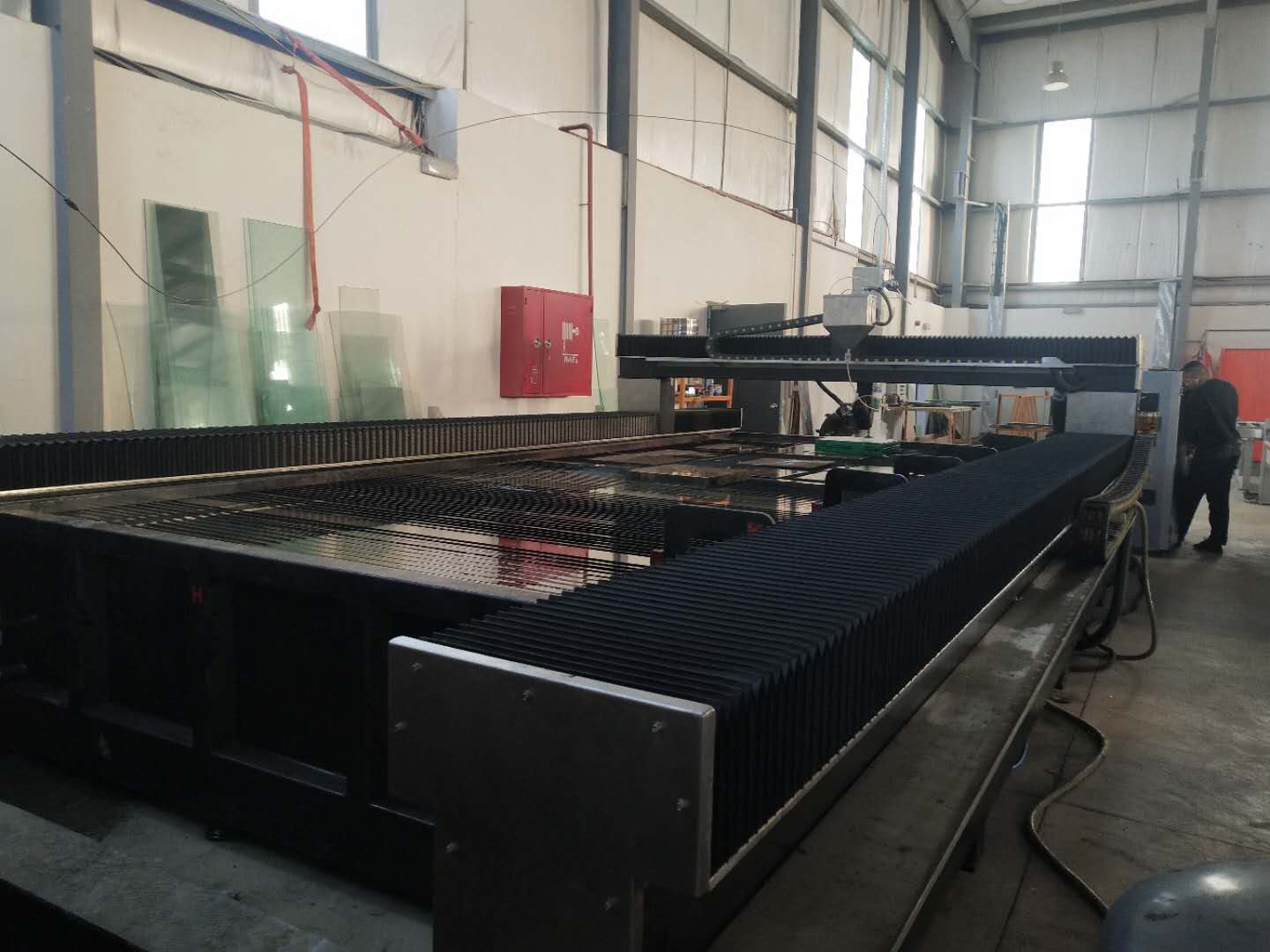

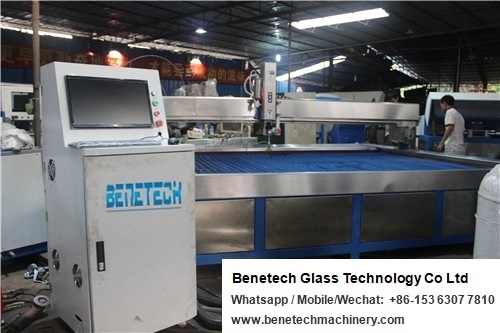

CNC waterjet cutting machine
The main components of extra-high jetting mechanism of BCW300/BCW380 series products adopt imported material with high intensity. The main seal mechanism has the function of automatic compensating, which make the life of seal components 3 to 4 times of ordinary one. Integrated one-way value is adopted in inlet and outlet, which decreases the number of seal nozzles and then prolongs service life of pump seat, because optimized design is adopted in the whole machine, pure mechanical jetting make installation and maintenance convenient and easy.
No. | Name | Parameter | Unit | ||
BCW300 | BCW380 | ||||
1 | Adjusting Range of Cutting Pressure | 0-300 | 0-380 | Mpa | |
2 | Working Pressure | 180-250 | 330-380 | Mpa | |
3 | Maximum Water Flux | 2 | 3.7 | L/min | |
4 | Water Nozzle(Stone)Diameter | Ø0.25-Ø0.3 | mm | ||
5 | Inner Hole Size of Sand-Mixed Pipe | Ø0.8 or Ø1.0 | mm | ||
6 | Main frame Motor | Type | Y225S-8 | Y225-4 | |
Rating Power | 18.5 | 37 | Kw | ||
Rating Rotating Speed | 726 | 1480 | r/min | ||
No. | Name | Parameter | ||||||||
1 | Type | 4.0×2.0 | 4.0×1.5 | 3.0×2.0 | 3.0×1.5 | 2.5×1.5 | 2.0×1.5 | 1.6×1.5 | 1.2×1.0 | |
2 | Maximum Cutting Size(mm) | 4000 | 4000 | 3000 | 3000 | 2500 | 2000 | 1600 | 1200 | |
3 | Travel of Knife Rest | 0-200mm | ||||||||
4 | Driving Speed | Servo Motor | 0-12000mm | |||||||
5 | Cutting Accuracy | ±0.20mm | ||||||||
6 | Controlling accuracy | ±0.01mm | ||||||||
7 | Working Motor | Servo Motor | ||||||||
8 | Air Compressor Pressure | 0.6-0.8Mpa | ||||||||
9 | Abrasive | Garnet | ||||||||
10 | abrasive granularity | 60-100 | ||||||||
11 | Microcomputer | 686 | ||||||||
12 | Software | Waterjet Scanning Program System | ||||||||
