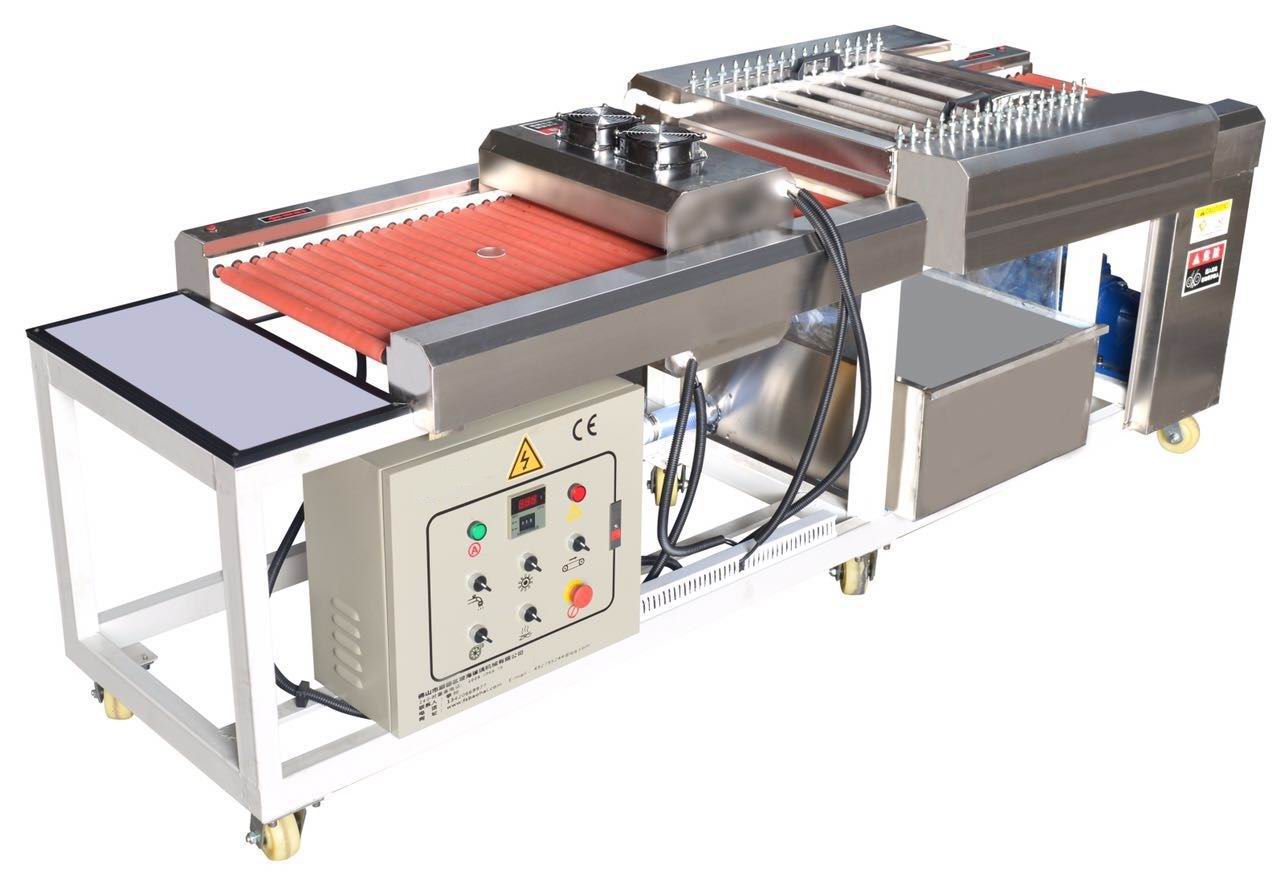

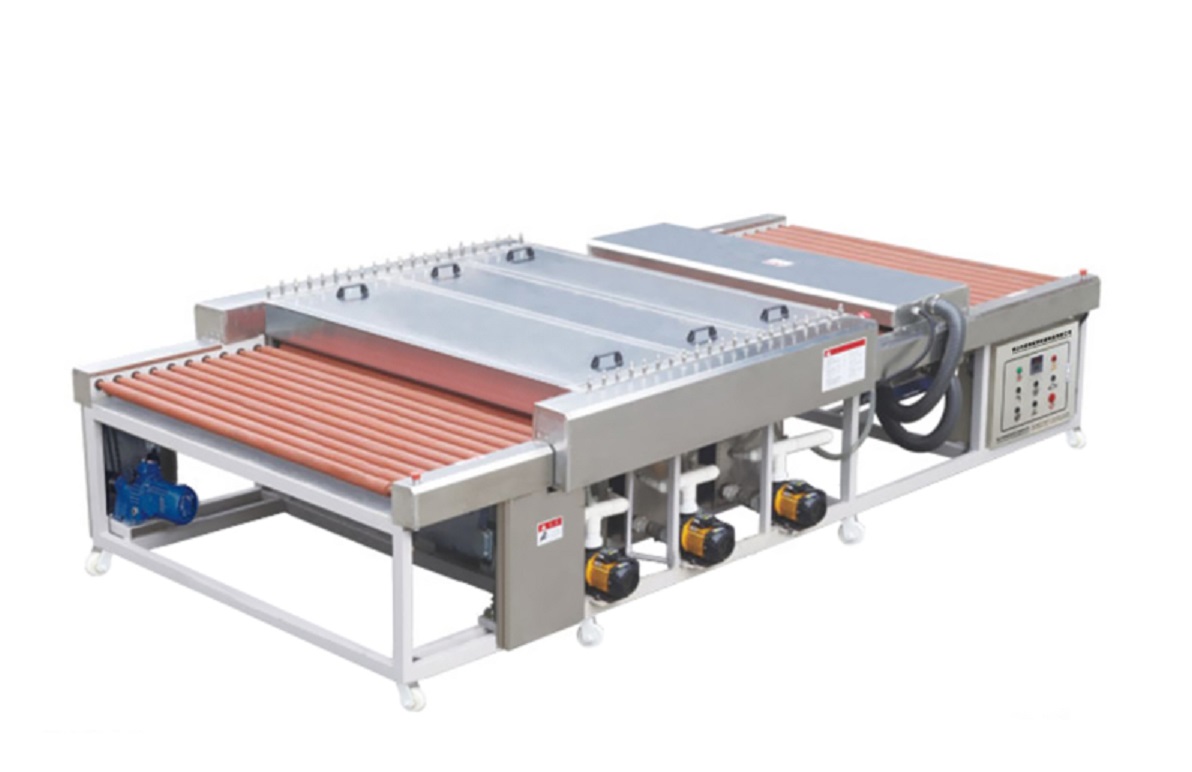

Glass Washing Machine

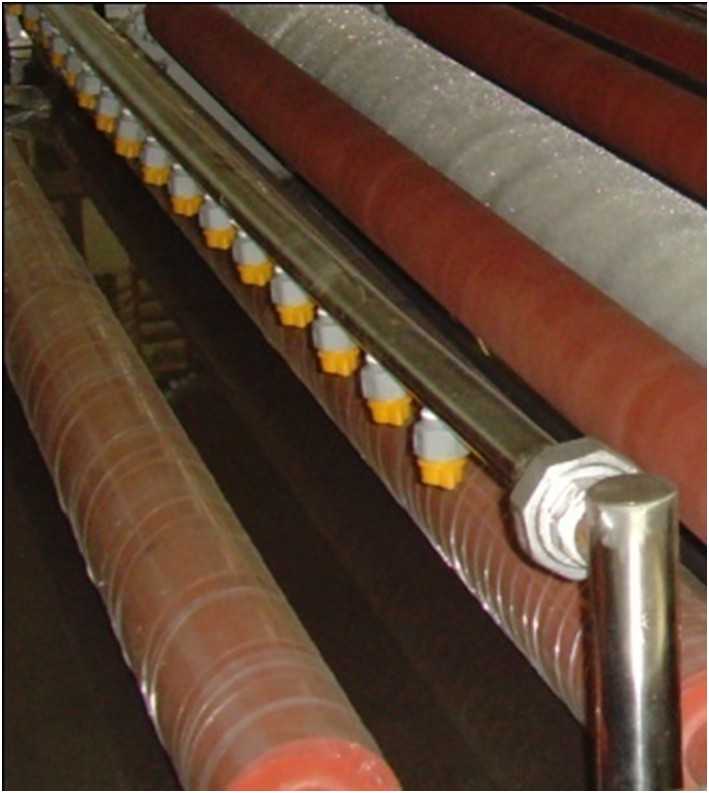

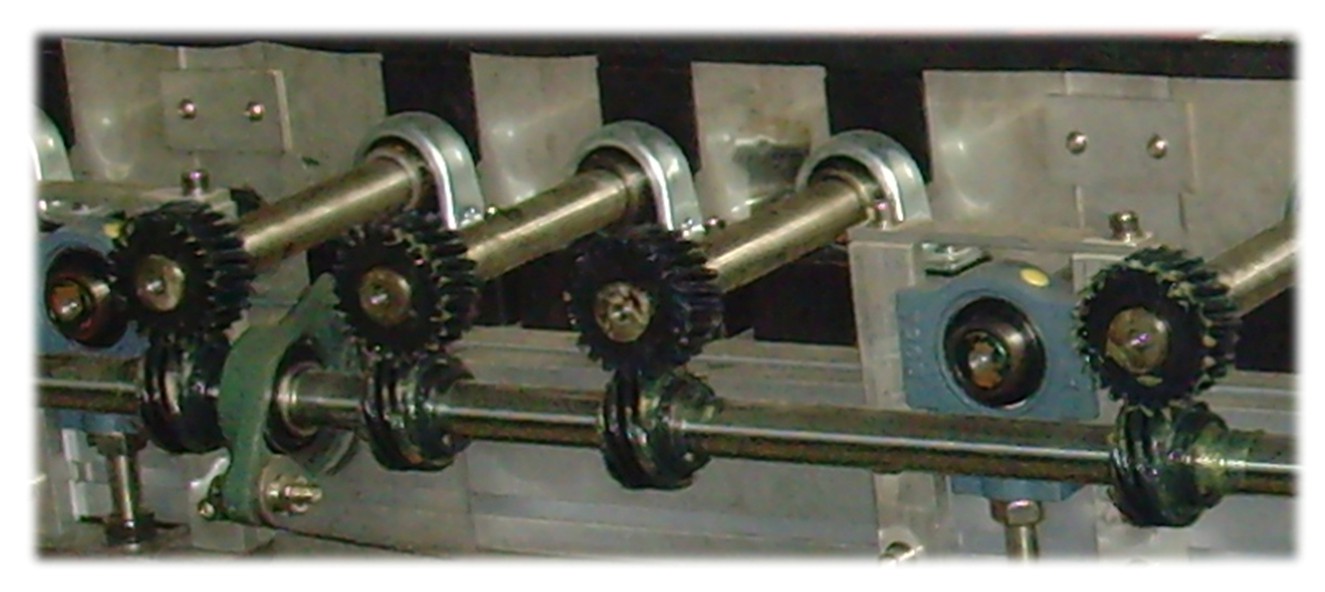

Glass washing machine is used for automatically cleaning and drying the glass or mirror with the thickness 3mm-19mm. Adopt horizontal transmission, washing and drying by 4 pairs of brush rollers and 3 pairs of sponge rollers, hot air drying system and speed is adjustable. Model of glass washing machine included:BWX500/800/1200/1600/2500. Model 0.6-1.2m is single stage washing. Model 1.6-2.5m is two-stage washing.

Wash coating and LOW-E glass are for different options.

Model

Speed (M/Min)

Min. size (mm)

Max. width (mm)

Thickness (mm)

Power (KW)

Overall dimension (mm)

BWX500

0.75-6

40*40

450

2-6

6

1800*900*1000

BWX800

0.75-6

100*100

750

3-15

8

2800*1200*1000

BWX1200

0.75-6

150*150

1150

3-15

9

3300*1600*1000

BWX1600

0.75-6

200*200

1550

3-15

10

4000*2000*1000

BWX2000

1-6

250*250

1950

3-20

20

5000*2400*1100

BWX2500

1-6

450*450

2500

3-20

30

7000*3500*2800
