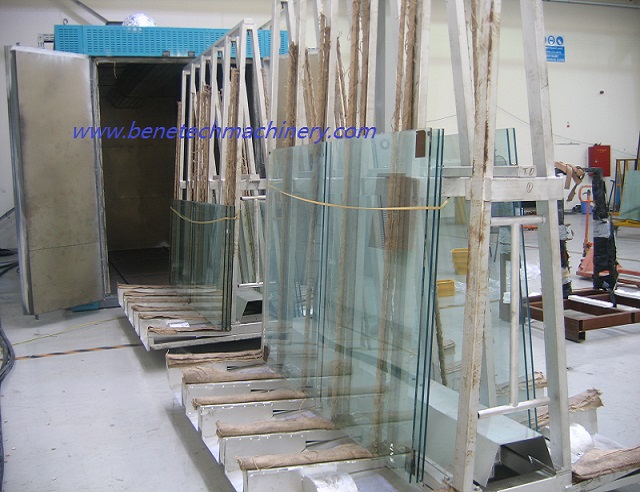

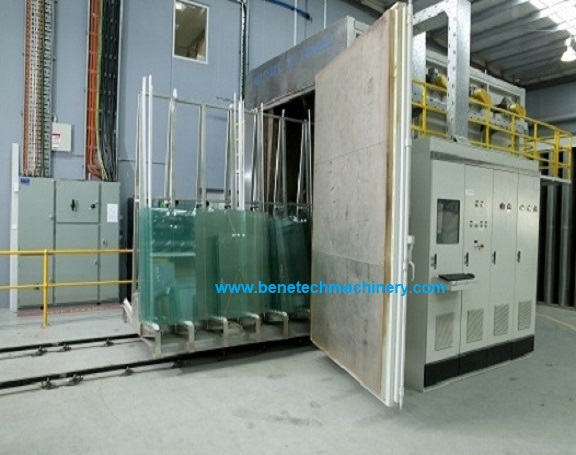

Tempered Glass Heat Soak Furnace

Tempered glass could have spontaneous breakage without receiving any external force, which is the nature of tempered glass. The reason comes from nickel sulfide inside the glass. Nickel sulfide is α~Nis in high temperature during the heating section of tempering procedure, when cooled rapidly in cooling section, there is no enough time for it to turn into β~Nis of low temperature. The morphic transformation will last for ten of years after the tempering glass is installed, leading to spontaneous breakage. Heat soak furnace is assistant equipment to tempering. Upon completion of glass tempering procedure, the glass is tested in the heat soak furnace to ignite those tempering glasses with potential spontaneous breakage in advance eliminating rudimental Nickel sulfide and to avoid breakage happens after installation. This increases the safety and reliability of building. The machine is characteristic of computer in-process monitoring and controlling, multi curve display, data storage, record check and curve printing. This machine can be extended to be used in drying low frit heating and pre-pressing of bending lamination glass. The machine can be customized.

Model

Max. glass size(mm)

Max. temperature

Soak time (h)

Capacity (kg/circle)

Total power(kw)

Overall size(mm)

BH2540

2500*4000

340

1-24,adjustable

3000

259

5160*2520*4500

BH2550

2500*5000

340

1-24,adjustable

4000

313

6160*2520*4500

BH2560

2500*6000

340

1-24,adjustable

5000

361

7160*2520*4500

BH2570

2500*7000

340

1-24,adjustable

5500

409

8160*2520*4500

BH3080

3000*8000

340

1-24,adjustable

6000

532

9160*2520*5000

BH3013

3000*13000

340

1-24,adjustable

10000

821

14160*2520*5000
